उत्पत्ति के प्लेस: | चीन |
ब्रांड नाम: | BRITEC |
मॉडल संख्या: | बीआर-25एम 2पी |
न्यूनतम आदेश मात्रा: | 100 पीस/पीस |
---|---|
पैकेजिंग विवरण: | निर्यात पैकिंग |
प्रसव के समय: | भुगतान के बाद 15 दिनों में भेज दिया |
भुगतान शर्तें: | एल/सी, डी/ए, टी/टी, वेस्टर्न यूनियन |
आपूर्ति की क्षमता: | 50000 टुकड़ा / टुकड़े महीना |
उत्पादक: | वानजाउ Britec इलेक्ट्रिक कं, लिमिटेड | नाम का हिस्सा: | टाइप 1 सर्ज रक्षक |
---|---|---|---|
उत्पत्ति का स्थान: | झेजियांग, चीन (मुख्यभूमि) | ब्रांड नाम: | BRITEC |
सुरक्षा मानक: | आईईसी61643-1 | यूसी: | 275 वी |
छोटा: | 25kA | लगाने के लिए: | 35 मिमी दीन रेल |
पोल नं.: | 2पी | आवेदन: | एकल चरण |
हाई लाइट: | Type 1 Surge Protection Device 275V,Single Phase Type1 Surge Protector,25kA T1 Type 1 Surge Protector |

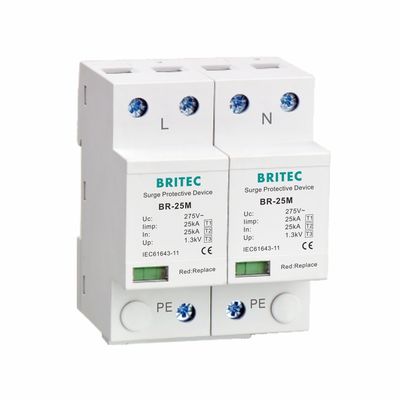

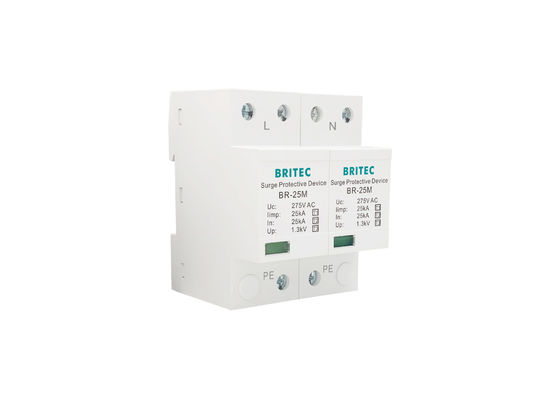

25kA Type 1 Surge Protector Features:
25kA Type 1 Surge Protector Technology characteristic:
BR-25M 2P | |
Max. continuous operating a.c. voltage Uc | 275V |
Voltage protection level Up | ≤1.3kV |
Lightning impulse current (10/350us) Iimp | 25kA |
Nominal discharge current (8/20us) In | 25kA |
Maximum discharge current (8/20us) Imax | 100kA |
Response time tA | ≤25ns |
Test standard | IEC61643-1 |
Operating temperature range Tu | -40℃—80℃ |
Relative humudity(25°C) | ≤95% |
For mounting on | 35mm Din rail |
Enclosure material | Thermoplastic UL94-V0 |
Dimension:
25kA Type 1 Surge Protector Application:
Company Information:
Britec is a factory, specializing in SPDs, located in Yueqing, Zhejiang, China. With advanced technology, our products have been authorized by TUV Rhineland, and CE successfully. We adheres to self R&D, strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, insist on being professional,large-scale brand.
Certification:
Product process:
Shipping:
FAQ:
Q1: How long is the delivery time?
A: Normally 20 working days after received deposit, we have our own factory, the delivery time can be adjust flexible.
Q2: What is the warranty for the surge protection?
A: Two years.
Q3: What is the payment terms?
A: T/T, Paypal, etc.
Q4: How about the products quality?
A: Our products have got CE, CB, TUV certificates.
Q5: Is it OK to print my logo on lightning arrester?
A: Yes. Please inform us formally before our production.
